What Is the EZ Concepts EzyJamb?
The EzyJamb is a galvanized steel
The EzyJamb is a galvanized steel, drywall-ready door jamb that eliminates the need for traditional casing. The system becomes part of the wall itself, allowing the door to sit perfectly flush for a clean, uninterrupted aesthetic.
Why homeowners and designers love it:
- Seamless minimalist look
- No trims, casing, or visual clutter
- Fits right into modern interior styles
- Incredibly durable — won’t crack like wood jambs
- Works with concealed RocYork hinges
- Allows a full 180° door swing
For installers, it’s also incredibly practical: hardware and casing in one, easy to assemble, and built to last.

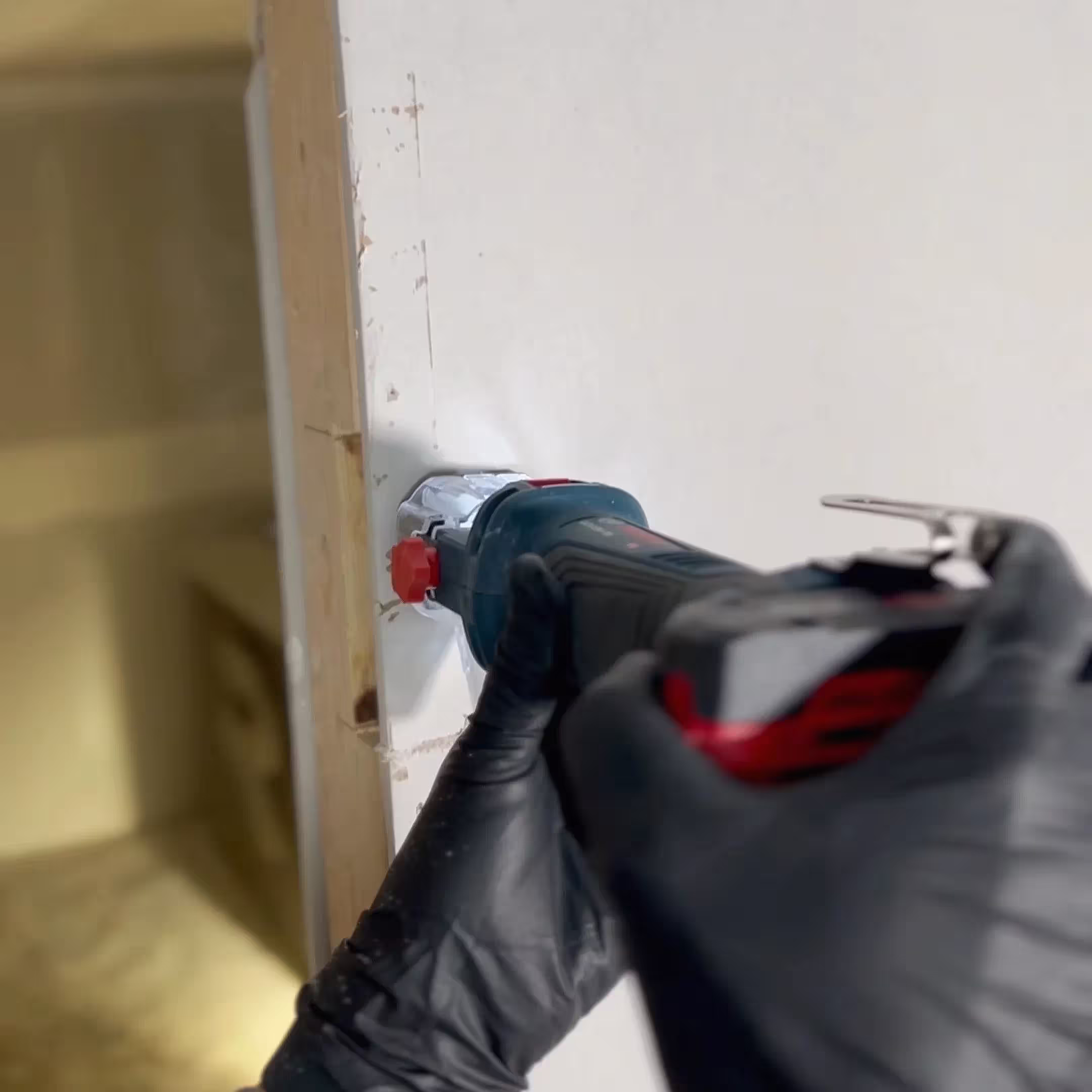

Step 1: Prep the Rough Opening
Before installing the EzyJamb, we had to adjust the rough framing to accommodate RocYork concealed hinges. These hinges are thicker than traditional ones and sit flush inside the door and jamb — which means removing some of the existing framing to give them room to recess properly.
This step ensures:
- The hinges slide in cleanly
- The jamb sits flat against the wall
- Everything lines up later when the door is fitted
It’s a crucial step for anyone planning a trimless, flush-to-wall door.

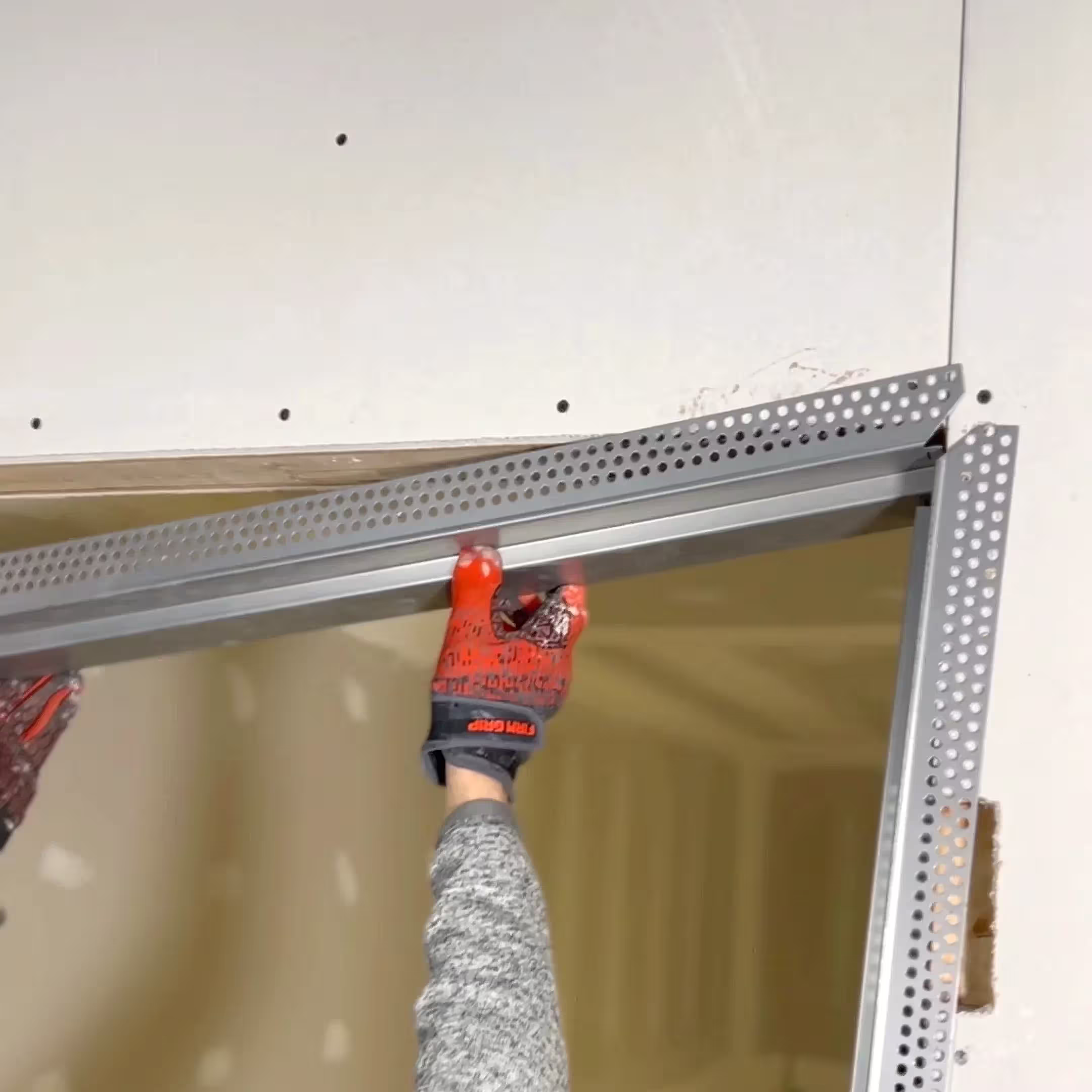

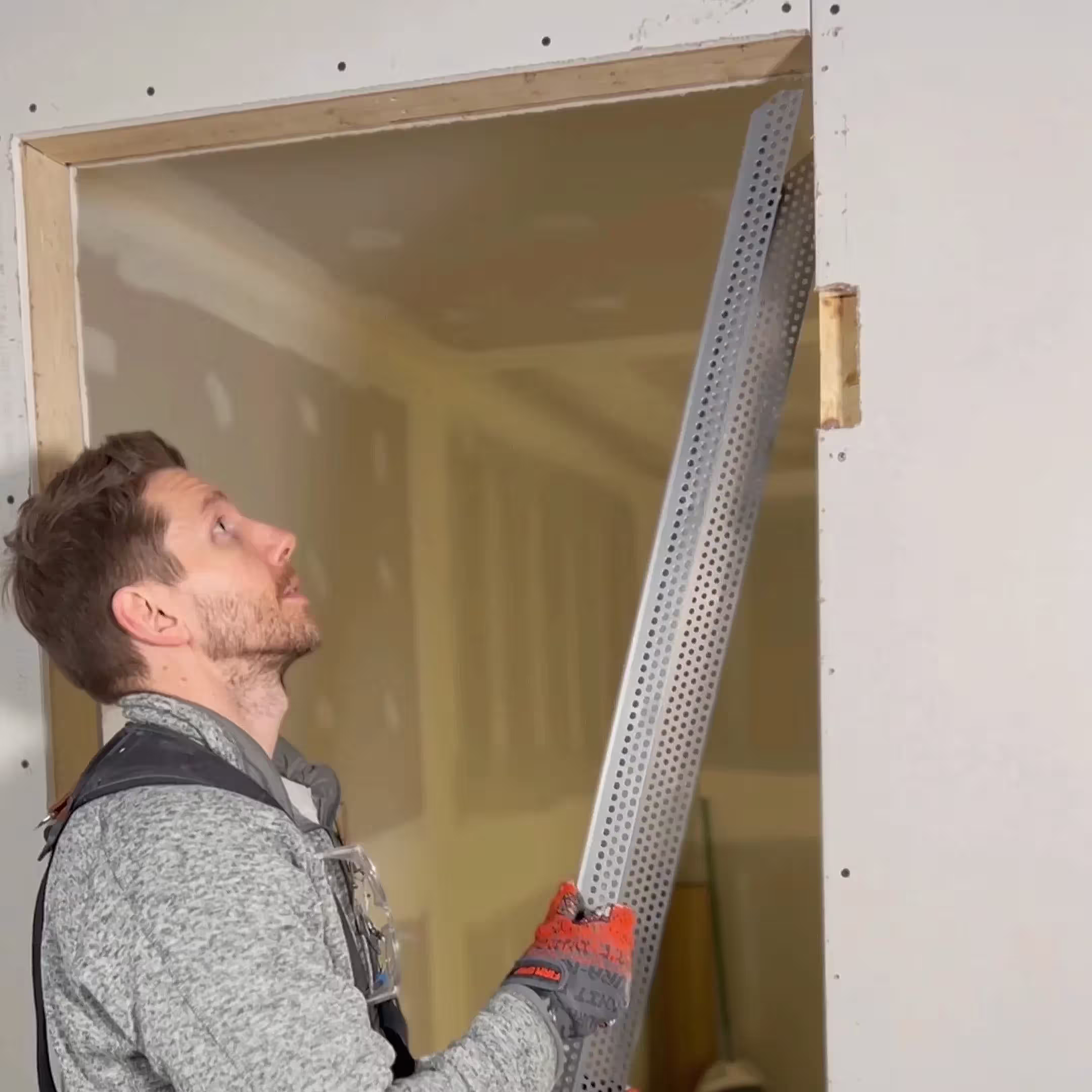

Step 2: Assemble the Jamb
Assemble the Jamb
The EzyJamb comes in three parts:
- The header
- Two vertical side pieces
- Interlocking metal flanges to hug the drywall
These pieces clip together quickly, creating a single solid frame that is ready to mount.
Once assembled, the next step is ensuring everything is:
- Perfectly level
- Perfectly square
- Evenly spaced on both sides
This prevents twisting or pulling as you fasten the jamb.

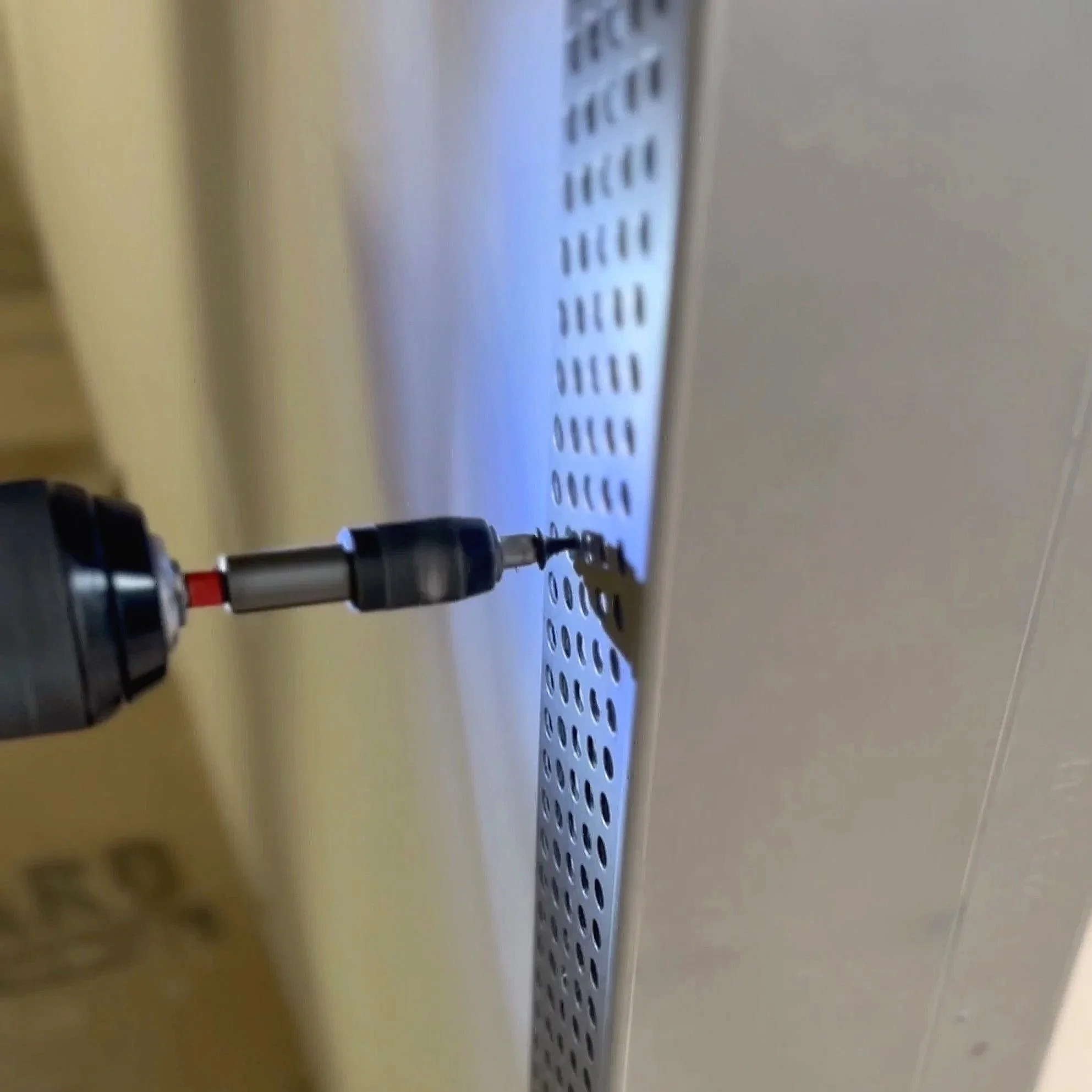

Step 3: Screw the Jamb to the Drywall and Framing
Screw the Jamb to the Drywall and Framing
With the frame aligned, we screw it directly through the drywall and into the structural framing behind it. Even spacing is key:
👉 Fasten both sides gradually and evenly
This prevents the jamb from shifting to one side and throwing the door off alignment.
Once installed, the frame is solid, rigid, and ready for finishing.

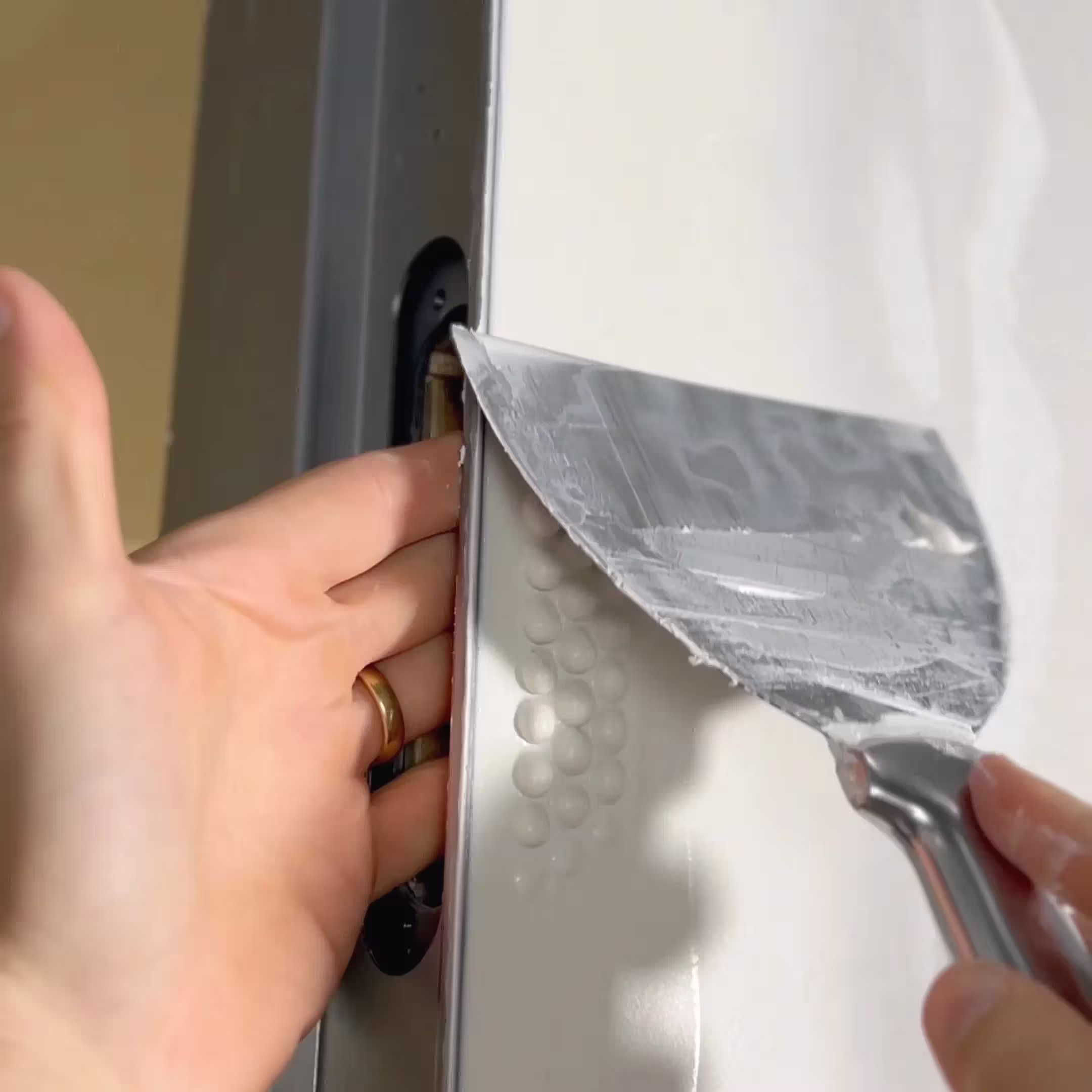

Step 4: Tape, Mud, and Create a Seamless Wall-to-Jamb Transition
Tape, Mud, and Create a Seamless Wall-to-Jamb Transition
Here’s where the magic happens.
To achieve the truly “frameless” look, we:
- Tape around the jamb edges
- Apply drywall compound to blend the metal into the wall
- Use our compound applicator tube for clean, fast application
- Apply multiple coats, letting each dry before sanding
Quick Tip:
Since we removed the drywall while routing out the wooden doorframe for the concealed hinge pockets, we covered the hinge pockets with paper tape temporarily to prevent compound from filling them. If you’re able to leave the drywall on while creating your hinge pockets in the wooden doorframe, you can skip this step.
Once sanded, the jamb is perfectly integrated into the wall surface.

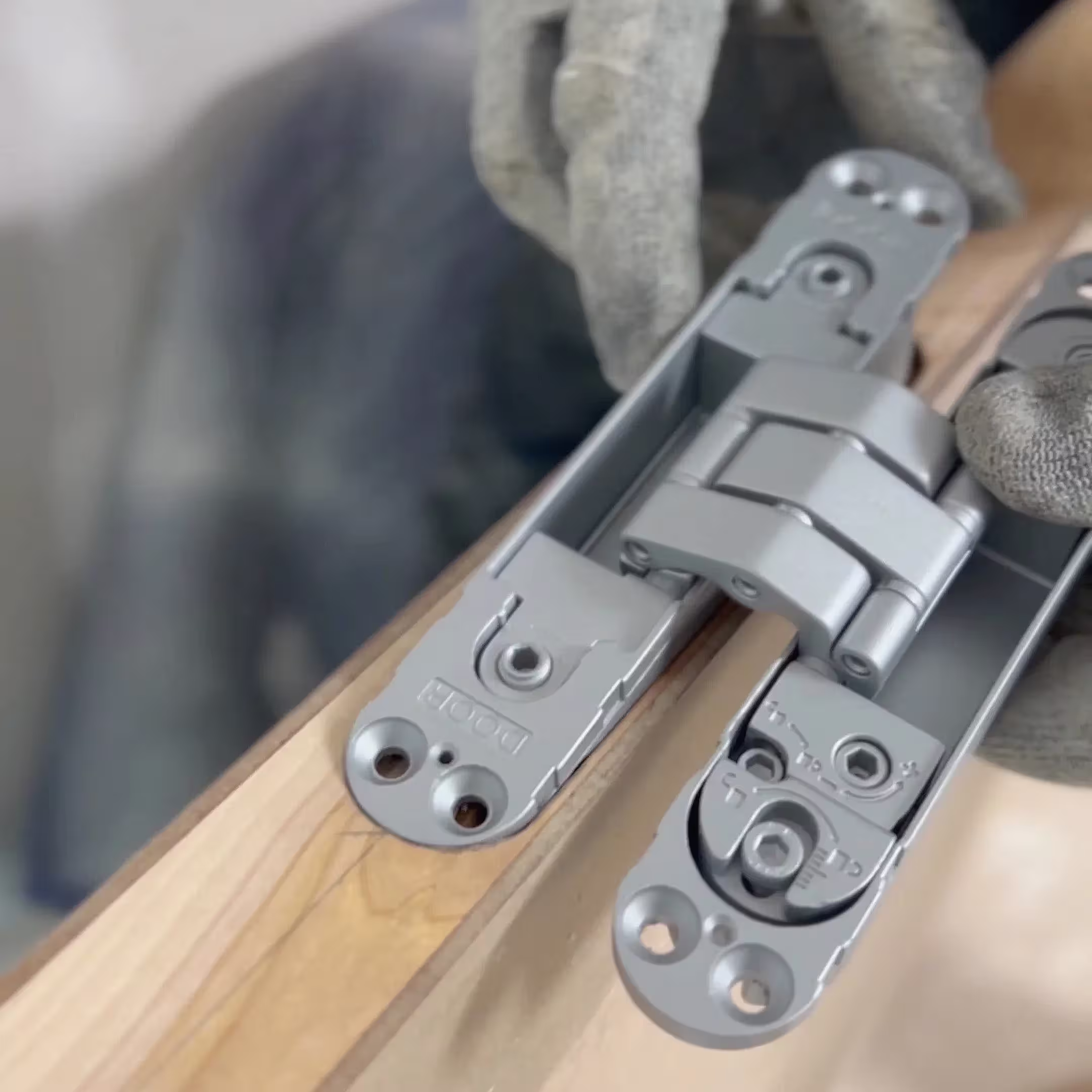

Step 5: Fit the Door
Using RocYork Concealed Hinges
At this point, the jamb is finished and ready for paint or door installation. We chose to install the door next — and, in true Refresh style, we decided to make our own.
This meant:
- Cutting the door to the exact width and height specified
- Routing and drilling recesses for the RocYork hinges
- Ensuring the hinges sit perfectly flush with the surface
Once attached, the hinges slide effortlessly into the factory-cut hinge pockets in the jamb.
Adjustment Options
The RocYork hinges allow:
- Vertical adjustment
- Horizontal adjustment
- Depth adjustment
Using just an Allen key, you can dial in the door until it's perfectly flush and perfectly aligned.

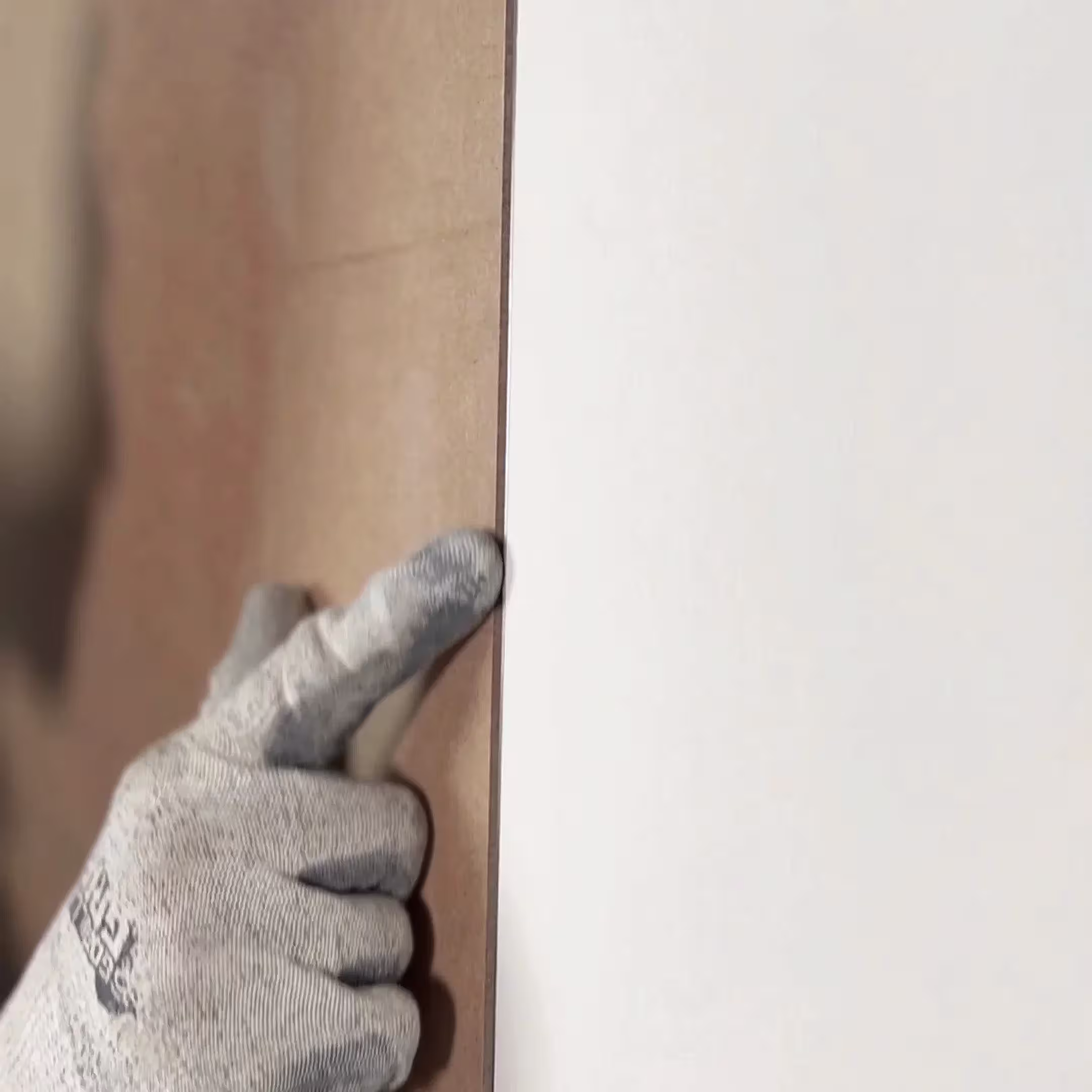

Final Result: A Clean, Modern, Trimless Doorway
A Clean, Modern, Trimless Doorway
When installed correctly, the EZ Concepts EzyJamb gives you:
- A frameless, flush-mounted door
- Zero casing
- No visible hardware
- A perfectly modern, minimalist profile
The type of finish that instantly elevates a room.
This system is strong, durable, and visually stunning — a huge leap forward for builders trying to meet demand for sleek, contemporary interior design.
If you want that high-end designer look without spending a fortune on custom millwork, the EzyJamb system is absolutely worth it.
Learn More About EZ Concepts Products
Concepts Products
For detailed specifications, installation guides, hinge options, and more, check out EZ Concepts here: 👉 https://ezconcept.com/products/ezyjamb/
